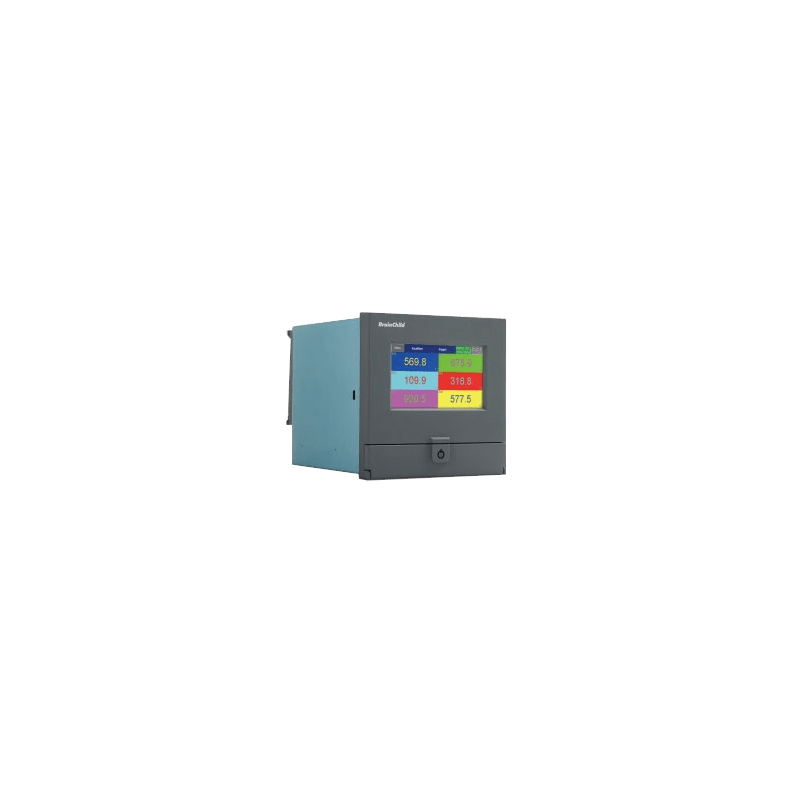

PR1006 Universal 6-channel paperless recorder
  • PR10: 6 universal analog channels
  • Optional inputs / outputs available
  • 4.3 '' TFT touch screen
  • Ethernet, SD and USB slot
  • Optional: RS232 / 422/485 and pulse input
  • Protection IP65 (front) and IP20 (rear)
  • CE, cULus and RoHS standards
  • Pulse input for flow applications
  • Direct connection to a printer
  • Web server and e-mail from the recorder
  • Remote IO channels, virtual channels
  • ModBus RTU and TCP, Master and Slave protocols
  • Customizable display like an HMI
  • Batch operations, FDA 21 and CFR 11 standards
  • 19 languages available
  • 16G SD card
€1,545.00 Tax excluded
Quantity
En cours d’appro. livraison sous 10j

Add to wishlist

  • Garanties sécurité Garanties sécurité
  • Politique de livraison Politique de livraison
  • Politique retours Politique retours

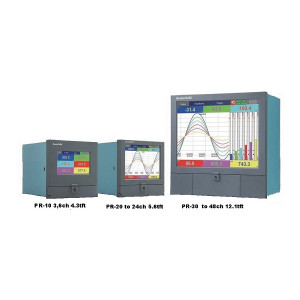

The PR paperless recorder series includes an entry-level model PR10, and high-end models PR20 and PR30.The PR-10 “plug & play” video recorder is designed to meet the requirements of the chemical, petrochemical, food industry, etc. Each user has the possibility of accessing process data on a very high definition “TFT” screen 4.3 inches (480x272 pixels) via RS-232, RS-422/485 Modbus RTU Ethernet and USB interfaces. It has up to 6 configurable measurement channels. In addition, the data is archived on SD memory cards from 2 GB or collected by a PC to allow it to be studied and printed.

PR1006

Download

Enregistreur sans papier

Enregistreur sans papier PR

Reviews

No customer reviews for the moment.

Write your review

PR1006 Universal 6-channel paperless recorder

  • PR10: 6 universal analog channels
  • Optional inputs / outputs available
  • 4.3 '' TFT touch screen
  • Ethernet, SD and USB slot
  • Optional: RS232 / 422/485 and pulse input
  • Protection IP65 (front) and IP20 (rear)
  • CE, cULus and RoHS standards
  • Pulse input for flow applications
  • Direct connection to a printer
  • Web server and e-mail from the recorder
  • Remote IO channels, virtual channels
  • ModBus RTU and TCP, Master and Slave protocols
  • Customizable display like an HMI
  • Batch operations, FDA 21 and CFR 11 standards
  • 19 languages available
  • 16G SD card
