• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Galvanic isolation (In/Out) : 2KVAC
• Installation : DIN Rail

For all clear, non-diphasic liquids and for all types of pipes from DN20 to DN1200:

• Accuracy of measurement 1 % F.S.
• Communications : 4~20 mA & RS485 Modbus
• Programmable data logger 16 GB SD card
• 16 hours battery life
• Non-invasive transducers Stainless steel IP68
• Mounting rails for optimal measurement
• 2x TT02 Transducers IP68 DN20 to DN1200
  -40 °C ~ 80°C
• Mounting rails with strip and clamps
• Standard cable length: 5 meters
• Optional energy meter

• * Dimensions:   44mm×22.5mm(Φ×H)
• * Output:   4 to 20mA
• * Supply voltage:   11.5 to 35VDC (non-Ex-Area) 11.5 to 30VDC (Ex-Area)
• * Input:   RTD, TC, Ohm, mV
• * Operation:   HART-protocol
• * Galvanic isolation(In/Out):  2KVAC
• * Installation:  sensor head Form B

• Output: 4 to 20mA
• Supply voltage:  7.5 to 45VDC
• Input:  RTD, TC, Ohm, mV
• Cold junction:  Internal
• Influence of ambient:  Negligible
• Load influence: Negligible
• Power supply influence:  Negligible
• Resolution:  0.3uA
• Installation:  sensor head Form B
• Operation:  PC-programmable

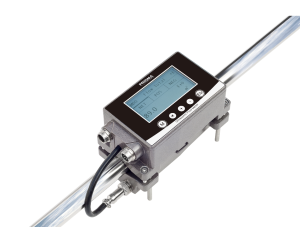

For all clear, non biphasic liquids and all types of pipes from DN20 to DN 1200 :

• Measurement accuracy 1% F.S
• Communications : 4~20 mA & RS485 Modbus
• Programmable data logger 16 GB SD card
• Battery 16 hours autonomy
• Non-invasive transducers Stainless steel IP68
• Mounting rails for optimal measurement
• Energy metering included
• 2x TT02 IP68 transducers
• -40 °C ~ 80 °C (130°C optional)
• Suitable for pipes DN 20 mm to DN 1200 mm
• Mounting rails with strip and clamps
• Standard cable length: 5 meters
• 2x non-intrusive PT100 IP68 temperature sensors
• Measurement of thermal & cooling energy

*Output: 4 to 20mA

*Supply voltage: 7.5 to 45VDC

*Input: RTD, TC, Ohm, mV

*Accuracy(Pt100): <0.2K or 0.08%

*Cold junction: Internal

*Galvanic isolation: 2 KVAC(In/Out)

*Influence of ambient: Negligible

*Load influence: Negligible

*Power supply influence: Negligible

*Resolution: 0.3uA

*Operation: HART-protocol

*Installation: sensor head Form B

*Dimensions: 44mm×24mm(Φ×H)

*Weight: approx. 35g

• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Installation : DIN Rail
