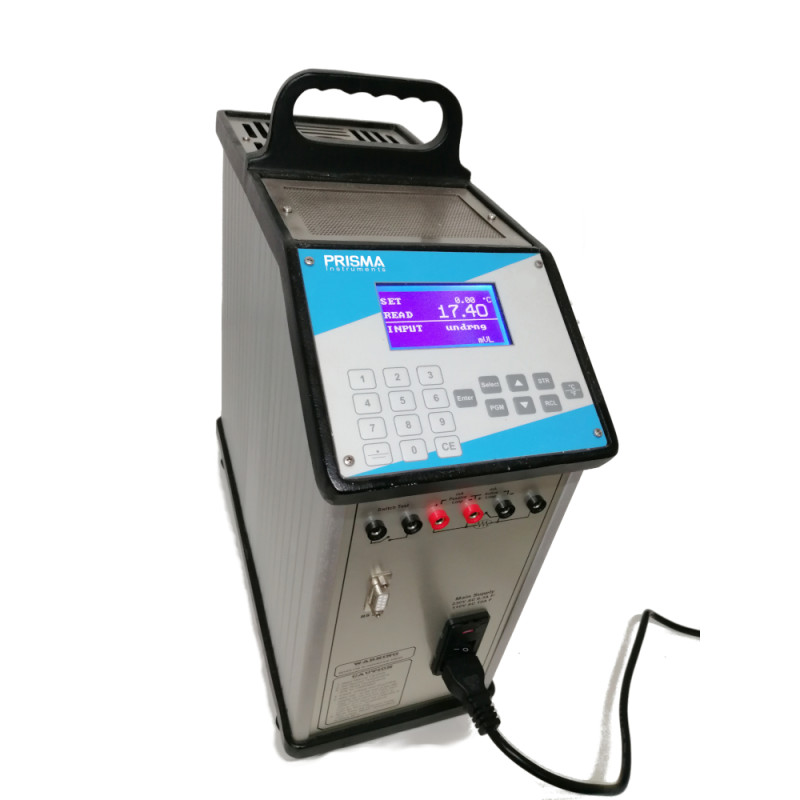

CTM-40 Calibration oven ambient temperature (-)40°C to 123°C

Accuracy: ± 0.3 °C
Stability: ± 0.05 °C
Resolution: 0.1 °C
Stabilization time: 7 minutes
Temperature unit: Selectable °C or °F
Well diameter: 19 mm
Immersion length: 100 mm
Heating time: 14 minutes (ambient to 123 °C)
Cooling time: 34 minutes (123 °C to (-)40 °C)
Interchangeable insert: Well for Ø 1/4’’ probes as standard (other sizes available on request).
Switch test: Provided
Power supply / Consumption: 100 V to 240V AC, 50 to 60 Hz, 150 W
Dimensions (L x W x H) / Weight: 160 x 365 x 350 mm / 9 kg
Enclosure type: Portable

Quantity
Demande de devis
En cours d’appro. livraison sous 10j

Add to wishlist

  • Garanties sécurité Garanties sécurité
  • Politique de livraison Politique de livraison
  • Politique retours Politique retours
Prisma Instruments presents its complete range of CTM Series portable dry block calibration ovens designed for
calibrate your temperature measuring instruments with great reliability and precision. Our range consists of 4
equipment at different temperature ranges depending on your needs.

CTM-40 (-)40°C from room temperature to 123°C

Our dry calibration ovens are portable and allow us to carry out calibrations of measuring instruments.
temperature directly on site or in the laboratory. It consists of an electrically heated or cooled metal block,
an internal reference with indicator to accurately determine the temperature of the block. The oven is equipped with inserts
interchangeable (single or multiple) with different diameters to receive the temperature instrument to be tested or
calibrate (RTD probes, thermocouples, thermometers, etc.). The oven can be delivered if you wish with a
PC interface and its very practical calibration software as well as an ISO17025 calibration certificate from a laboratory
authorized.

CTM-40
Reviews

No customer reviews for the moment.

Write your review

CTM-40 Calibration oven ambient temperature (-)40°C to 123°C

Accuracy: ± 0.3 °C
Stability: ± 0.05 °C
Resolution: 0.1 °C
Stabilization time: 7 minutes
Temperature unit: Selectable °C or °F
Well diameter: 19 mm
Immersion length: 100 mm
Heating time: 14 minutes (ambient to 123 °C)
Cooling time: 34 minutes (123 °C to (-)40 °C)
Interchangeable insert: Well for Ø 1/4’’ probes as standard (other sizes available on request).
Switch test: Provided
Power supply / Consumption: 100 V to 240V AC, 50 to 60 Hz, 150 W
Dimensions (L x W x H) / Weight: 160 x 365 x 350 mm / 9 kg
Enclosure type: Portable

Write your review
