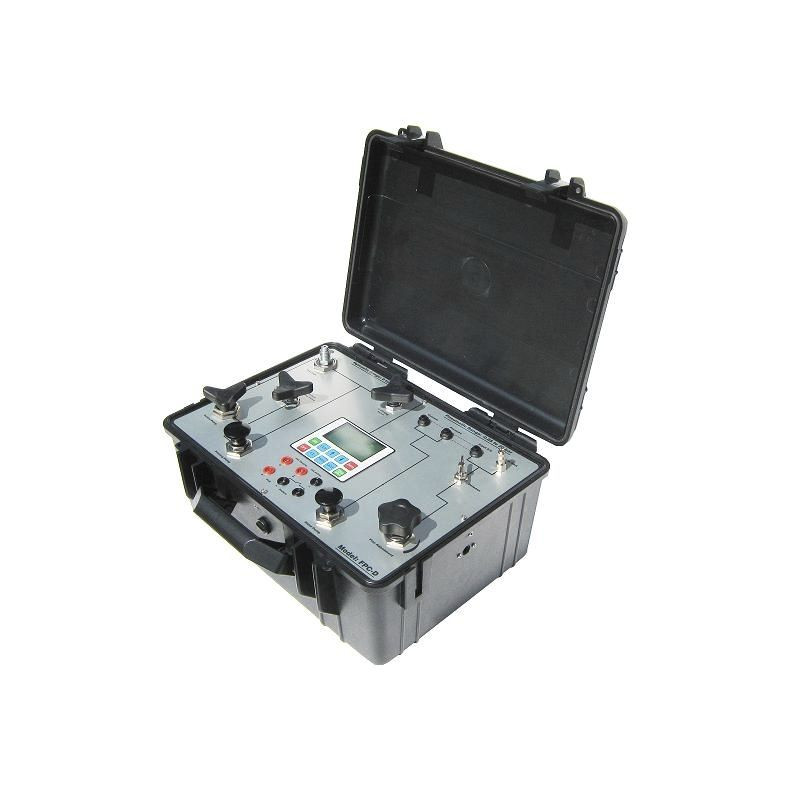

PPC-D Calibrateur de pression portable Pneumatique & Hydraulique ±0.025% PE

  • Pneumatic Pressure: -0.85 to 20 bar.
  • Hydraulic Pressure: 0 to 400 bar.
  • Accuracy: ±0.025% FS.
  • Temperature Compensation: Automatic from 0 to 50 °C.
  • Selectable Pressure Units: kg/cm², psi, bar, mbar, etc.
  • Current Input: 50 mA active, 25 mA passive, 800 Ω resistance.
  • Voltage Input: 0 to 30 VDC, resolution 0.01 (mA/V).
  • Switch Test: Up to 5 VDC.
  • Media: Air and oil.
  • Overpressure Alarm: 120% FS (visual and audible).
  • Pressure Generation: Built-in pumps with fine adjustment vernier.
  • Power Supply: Rechargeable 7.2 Volts (AA) battery.
  • Operating Temperature: 15 °C to 40 °C.
  • Storage Temperature Range: 10 °C to 60 °C.
  • Protection Class: IP10.
  • Zero Adjustment: Automatic if pressure is less than 1% FS.
Quantity
Demande de devis
En cours d’appro. livraison sous 10j

Add to wishlist

  • Garanties sécurité Garanties sécurité
  • Politique de livraison Politique de livraison
  • Politique retours Politique retours
PPC-D

Download

PPC D fr

Reviews

No customer reviews for the moment.

Write your review

PPC-D Calibrateur de pression portable Pneumatique & Hydraulique ±0.025% PE

  • Pneumatic Pressure: -0.85 to 20 bar.
  • Hydraulic Pressure: 0 to 400 bar.
  • Accuracy: ±0.025% FS.
  • Temperature Compensation: Automatic from 0 to 50 °C.
  • Selectable Pressure Units: kg/cm², psi, bar, mbar, etc.
  • Current Input: 50 mA active, 25 mA passive, 800 Ω resistance.
  • Voltage Input: 0 to 30 VDC, resolution 0.01 (mA/V).
  • Switch Test: Up to 5 VDC.
  • Media: Air and oil.
  • Overpressure Alarm: 120% FS (visual and audible).
  • Pressure Generation: Built-in pumps with fine adjustment vernier.
  • Power Supply: Rechargeable 7.2 Volts (AA) battery.
  • Operating Temperature: 15 °C to 40 °C.
  • Storage Temperature Range: 10 °C to 60 °C.
  • Protection Class: IP10.
  • Zero Adjustment: Automatic if pressure is less than 1% FS.
