  • New

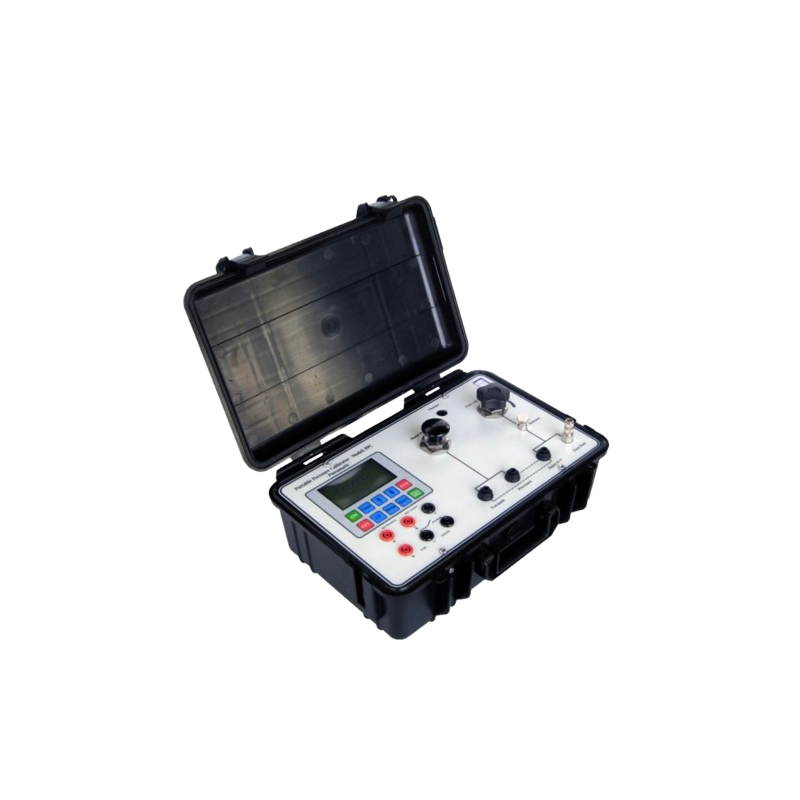

PPC-P+-7 Portable pressure calibrator -0,85 à 7 Bar 0,025% P.E.

Pressure range: -0.85 to 2 bar
Pressure measurement and generation
Accuracy: ± 0,025% FS
Temperature compensation: 0 °C to 50 °C
Selectable measurement units:Kg/cm², Bar, mBar, PSI, mH₂O, mmH₂O, cmH₂O, inH₂O, ftH₂O, mmHg, inHg, Atm, MPa, kPa, Pa
Current measurement: Active loop: 50 mA, Passive loop: 25 mA, Load resistance: 800 Ω
Voltage measurement: 0 to 30 VDC
Resolution (mA / V): 0.001
Switch test: Maximum 5 VDC
Medium: Air
Overpressure alarm: Visual and audible, 120% FS
Pressure generation: Integrated pneumatic pump with fine adjustment vernier and depressurization valve
Power supply: Rechargeable 7.2 V AA battery
Dimensions / Weight: 330 x 235 x 125 mm, 4 kg



€0.00 Tax excluded
Quantity
En cours d’appro. livraison sous 10j

Add to wishlist

  • Garanties sécurité Garanties sécurité
  • Politique de livraison Politique de livraison
  • Politique retours Politique retours

The PPC-P+ are next-generation pressure calibrators designed to generate, control, and measure pneumatic pressures (air) ranging from -0.85 bar to 2 bar. These devices are equipped with an integrated pump, a large backlit LCD screen, and a rechargeable battery, making them ideal for use in laboratories or on-site.

These calibrators also enable current measurement (active and passive loop) and voltage measurement, providing a comprehensive solution for calibrating, maintaining, and troubleshooting pressure instruments. With their accuracy of ± 0.05% FS, they are a superior alternative to manual pumps and traditional calibrators.

Durable and portable, they include advanced features such as switch testing, visual and audible overpressure alarms, and automatic zero adjustment. They come with a sturdy carrying case, connection accessories, and a factory calibration certificate.

PPC-P+-2
Reviews

No customer reviews for the moment.

Write your review

PPC-P+-7 Portable pressure calibrator -0,85 à 7 Bar 0,025% P.E.

Pressure range: -0.85 to 2 bar
Pressure measurement and generation
Accuracy: ± 0,025% FS
Temperature compensation: 0 °C to 50 °C
Selectable measurement units:Kg/cm², Bar, mBar, PSI, mH₂O, mmH₂O, cmH₂O, inH₂O, ftH₂O, mmHg, inHg, Atm, MPa, kPa, Pa
Current measurement: Active loop: 50 mA, Passive loop: 25 mA, Load resistance: 800 Ω
Voltage measurement: 0 to 30 VDC
Resolution (mA / V): 0.001
Switch test: Maximum 5 VDC
Medium: Air
Overpressure alarm: Visual and audible, 120% FS
Pressure generation: Integrated pneumatic pump with fine adjustment vernier and depressurization valve
Power supply: Rechargeable 7.2 V AA battery
Dimensions / Weight: 330 x 235 x 125 mm, 4 kg



Write your review
