• Dimensions: 44mm×22.5mm(Φ×H)
• Output: 4 to 20mA
• Supply voltage: 8 to 35VDC (non-Ex-Area)
•                              8 to 30VDC (Ex-Area)
• Input: PT100
• Installation: sensor head Form B

For all clear, non-diphasic liquids and for all types of pipes from DN20 to DN1200:

• Accuracy of measurement 1 % F.S.
• Communications : 4~20 mA & RS485 Modbus
• Programmable data logger 16 GB SD card
• 16 hours battery life
• Non-invasive transducers Stainless steel IP68
• Mounting rails for optimal measurement
• 2x TT02 Transducers IP68 DN20 to DN1200
  -40 °C ~ 80°C
• Mounting rails with strip and clamps
• Standard cable length: 5 meters
• Optional energy meter

• Storage temperature ; Atmospheric temperature
• Operating ambient temperature : -20°C to +60° C
• Media Temp : for rubber diaphragms 80 degree C max, higher with metal diaphragms
• Can be offered for higher temperatures with other capsule combinaisons
• Setpoint repeatability : ± 1% of FSR
• Enclosure : Die cast aluminium to IP 66
• Switch output : SPDT, DPDT, hermetically sealed, gold plated contacts
• Process connection : 1/4 "BSP standard, other options like flanges, triclover clamps, diaphragm seals available

• Storage temperature ; Atmospheric temperature
• Operating ambient temperature : -20°C to +60° C
• Media Temp : for rubber diaphragms 80 degree C max, higher with metal diaphragms
• Can be offered for higher temperatures with other capsule combinaisons
• Setpoint repeatability : ± 1% of FSR
• Enclosure : Die cast aluminium to IP 66
• Switch output : SPDT, DPDT, hermetically sealed, gold plated contacts
• Process connection : 1/4 "BSP standard, other options like flanges, triclover clamps, diaphragm seals available

• Input: RTD
• Type:pt100
• Accuracy:0.2K or 0.1% of spanPerformance characteristics
• Response time: 1s
• Reference condition : Calibration temperature:+23°C(73.4K)±5K
• Long term stability:≤0.05%year
• Switch on delay:≤5s
• Influence of ambient: Negligible
• Load influence: Negligible
• Power supply influence:Negligible
• Resolution:1μA·Storage temperature
• Ambient temperature limits:40 to +85 °C (-40 to 185 °F)
• Storage temperature: -40 to +100 °C (-40 to 212 °F)
• Condensation: Allowable
• Degree of protection:IP00/IP66 installed
• Shock and vibration resistance:4g/2 to150 Hz as per IEC 60 068-26
• Electromagnetic compatibility (EMC) : Interference immunity and interference emission
• GB/T17626.2-1998), compliance with IEC 61000-4-3:1995

• * Galvanic isolation
• * No external power supply for configuration
• * Write or read the configuration off-line by just connecting a PC
• * Fault signal on sensor break or short circuit
• * 2 wire technology, 4 to 20mA analogue output
• * High accuracy in total ambient temperature range
• * Customer specific measurement range setting or expanded SETUP

• IIoT capability
• Integrated pressure sensor with stainless steel diaphragm
• Accuracy 0.25% standard (finer accuracies are available)
• OLED color display
• Easy to use via a mobile application in real time
• Possibility to set parameters via a dashboard
• 4 relays, switch-on and switch-off points can be set independently
• Possibility to program a delayed measurement

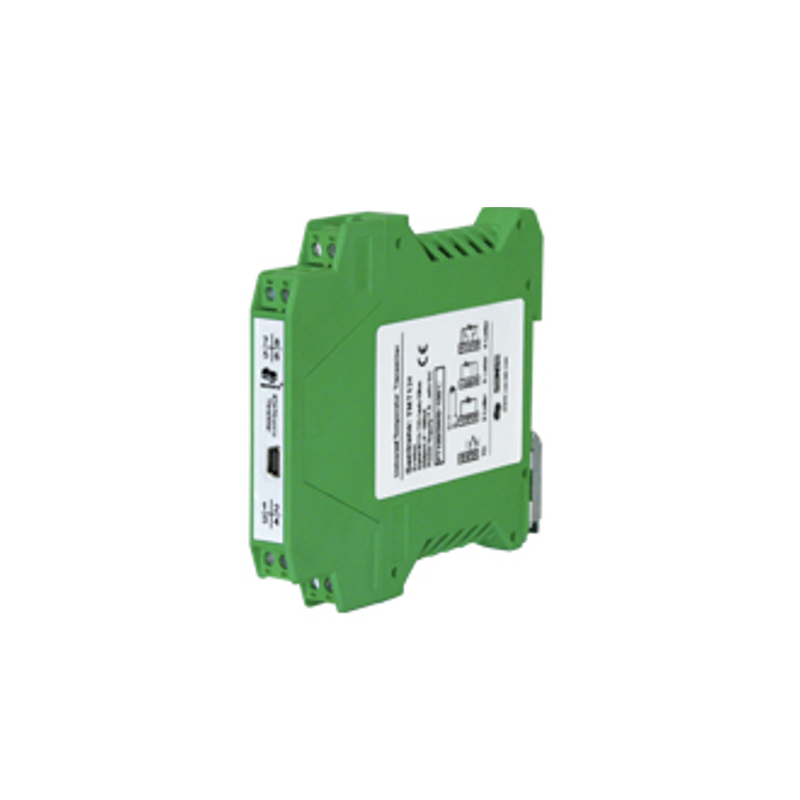

• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Galvanic isolation (In/Out) : 2KVAC
• Installation : DIN Rail

CN-BT (Low Temperature):

• Temperature Range: Ambient Temp. +10 °C to 350 °C
• Accuracy: Less than 0.5% F.S. (Min. 1 °C)
• Stability: ± 0.5 °C
• Resolution: 0.1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 45 minutes
• Stabilization Time: 20 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 485 x 430 x 190 mm / 11 kg
• Calibration Certification: Factory with ISO17025 traceability included

• Storage temperature ; Atmospheric temperature
• Operating ambient temperature : -20°C to +60° C
• Media Temp : for rubber diaphragms 80 degree C max, higher with metal diaphragms
• Can be offered for higher temperatures with other capsule combinaisons
• Setpoint repeatability : ± 1% of FSR
• Enclosure : Die cast aluminium to IP 66
• Switch output : SPDT, DPDT, hermetically sealed, gold plated contacts
• Process connection : 1/4 "BSP standard, other options like flanges, triclover clamps, diaphragm seals available
