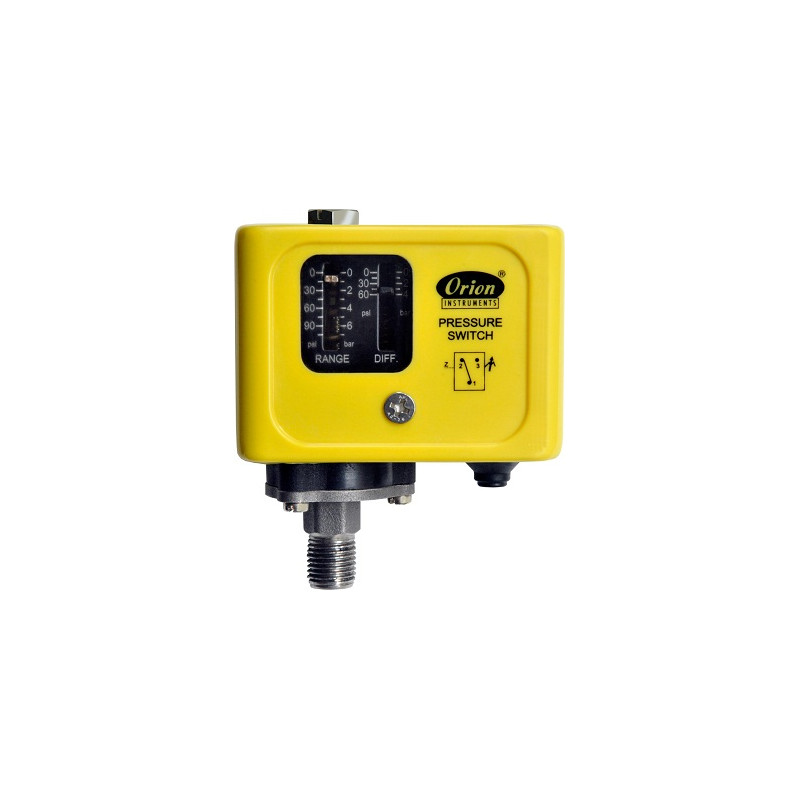

• Storage temperature ; Atmospheric temperature
• Operating ambient temperature : -20°C to +60° C
• Media Temp : for rubber diaphragms 80 degree C max, higher with metal diaphragms
• Can be offered for higher temperatures with other capsule combinaisons
• Setpoint repeatability : ± 1% of FSR
• Enclosure : Die cast aluminium to IP 66
• Switch output : SPDT, DPDT, hermetically sealed, gold plated contacts
• Process connection : 1/4 "BSP standard, other options like flanges, triclover clamps, diaphragm seals available

For all clear, non biphasic liquids and all types of pipes from DN20 to DN 1200 :

• Measurement accuracy 1% F.S
• Communications : 4~20 mA & RS485 Modbus
• Programmable data logger 16 GB SD card
• Battery 16 hours autonomy
• Non-invasive transducers Stainless steel IP68
• Mounting rails for optimal measurement
• Energy metering included
• 2x TT02 IP68 transducers
• -40 °C ~ 80 °C (130°C optional)
• Suitable for pipes DN 20 mm to DN 1200 mm
• Mounting rails with strip and clamps
• Standard cable length: 5 meters
• 2x non-intrusive PT100 IP68 temperature sensors
• Measurement of thermal & cooling energy

• Range: 0-20 mg/L, 0-200%, 0-400 hPa
• Resolution: 0.01 mg/L, 0.1%, 1 hPa
• Output signal: 4 ~ 20 mA; Relay; RS485
• Power supply: AC220V±10%; 50Hz/60Hz
• Communication protocol: MODBUS-RTU standard (customizable)
• Operating temperature: 0~60 °C

• Hose material: Metal/ Rigid plastic tube made of PCV, PP or PVDF
• Liquid type: Water/Other (fluids without solid particles or impurities)
• 0-75° (no surface freezing)
• Low speed cut-off value: 0.1m/s
• Display: 256*128, LCD
• Response time: 0.5-60s
• Accuracy: +/-2%, (+/-1% after calibration)
• Data storage period: 300ms
• Memory for data saving: EEPROM, data storage more than 10 years
• I/O power supply: M12 type aviation plug
• Output: 4-20mA
• Communication: Modbus RS485
• Option for output: OCT, alarm relay
• Power supply: 10-24VVDC
• Electrical power : <3W
• Ambient temperature : -10° to 60°C
• Cable length: 2m, PT100 sensor cable length is 9m

For all clear, non-diphasic liquids and for all types of pipes from DN20 to DN1200:

• Accuracy of measurement 1 % F.S.
• Communications : 4~20 mA & RS485 Modbus
• Programmable data logger 16 GB SD card
• 16 hours battery life
• Non-invasive transducers Stainless steel IP68
• Mounting rails for optimal measurement
• 2x TT02 Transducers IP68 DN20 to DN1200
  -40 °C ~ 80°C
• Mounting rails with strip and clamps
• Standard cable length: 5 meters
• Optional energy meter

• Output: 4 to 20mA
• Supply voltage:  7.5 to 45VDC
• Input:  RTD, TC, Ohm, mV
• Cold junction:  Internal
• Influence of ambient:  Negligible
• Load influence: Negligible
• Power supply influence:  Negligible
• Resolution:  0.3uA
• Installation:  sensor head Form B
• Operation:  PC-programmable

• Storage temperature ; Atmospheric temperature
• Operating ambient temperature : -20°C to +60° C
• Media Temp : for rubber diaphragms 80 degree C max, higher with metal diaphragms
• Can be offered for higher temperatures with other capsule combinaisons
• Setpoint repeatability : ± 1% of FSR
• Enclosure : Die cast aluminium to IP 66
• Switch output : SPDT, DPDT, hermetically sealed, gold plated contacts
• Process connection : 1/4 "BSP standard, other options like flanges, triclover clamps, diaphragm seals available

• Dimensions: 44mm×22.5mm(Φ×H)
• Output: 4 to 20mA
• Supply voltage: 8 to 35VDC (non-Ex-Area)
•                              8 to 30VDC (Ex-Area)
• Input: PT100
• Installation: sensor head Form B

• Communication : e-HART
• Output : 4 to 20mA
• Supply voltage : 7.5 to 45VDC
• Input : RTC, TC, Ohm, mV
• Cold junction : Internal
• Accuracy (Pt100) : <0,2K or 0,08%
• Influence of ambient : Negligible
• Load influence : Negligible
• Power supply influence : Negligible
• Resolution : 0.3uA
• Installation : DIN Rail

• Storage temperature ; Atmospheric temperature
• Operating ambient temperature : -20°C to +60° C
• Media Temp : for rubber diaphragms 80 degree C max, higher with metal diaphragms
• Can be offered for higher temperatures with other capsule combinaisons
• Setpoint repeatability : ± 1% of FSR
• Enclosure : Die cast aluminium to IP 66
• Switch output : SPDT, DPDT, hermetically sealed, gold plated contacts
• Process connection : 1/4 "BSP standard, other options like flanges, triclover clamps, diaphragm seals available

• Input: RTD
• Type:pt100
• Accuracy:0.2K or 0.1% of spanPerformance characteristics
• Response time: 1s
• Reference condition : Calibration temperature:+23°C(73.4K)±5K
• Long term stability:≤0.05%year
• Switch on delay:≤5s
• Influence of ambient: Negligible
• Load influence: Negligible
• Power supply influence:Negligible
• Resolution:1μA·Storage temperature
• Ambient temperature limits:40 to +85 °C (-40 to 185 °F)
• Storage temperature: -40 to +100 °C (-40 to 212 °F)
• Condensation: Allowable
• Degree of protection:IP00/IP66 installed
• Shock and vibration resistance:4g/2 to150 Hz as per IEC 60 068-26
• Electromagnetic compatibility (EMC) : Interference immunity and interference emission
• GB/T17626.2-1998), compliance with IEC 61000-4-3:1995

• Universal settings with HART-protocol for various input signals
• 2 wire technology, 4 to 20mA analogue output
• High accuracy in total ambient temperature range
• Galvanic isolation
• An internal temperature sensor of active temperature compensation
• Wide voltage supply range
• Customer specific measurement range settings
• Simple and user friendly software
• Multiparametric backlight rotatable LCD display

Features

• Range: 0.01 electrode: 0.02~20.00us/cm
• 0.1 electrode: 0.2~200.0us/cm
• 1.0 electrode: 2~2000us/cm
• 10.0 electrode: 0.02~20ms/cm
• Output signal: 4 ~ 20 mA; Relay; RS485
• Power supply: AC220V±10%, 50Hz/60Hz
• Operating temperature: 0~60°C
• Accuracy : ± 2 % PE
• Measuring medium: Liquid
• Relay output: 250 VAC, 3A
