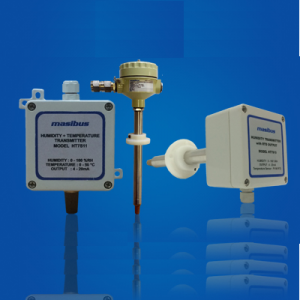

- Rugged weather proof enclosure with Exproof enclosure as an option
- Available in Wall and Duct mounting versions.
- Three variants.
- Measuring Range: 0-100% RH in models, suitable formmany applications
- Class-A RTD Pt 100 sensor used for temperature measurement
- Linearised analog 4-20mA signal output (2wire loop powered)
- Replaceable humidity sensor assembly
- Capacitance based sensing.
- High Accuracy
- Excellent long-term stability

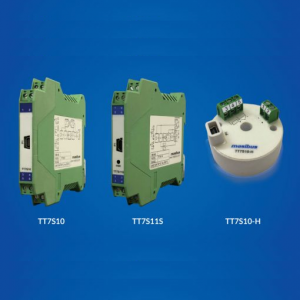

- Universal input (RTD, Thermocouple, Ohm, mV)
- Available in below options :

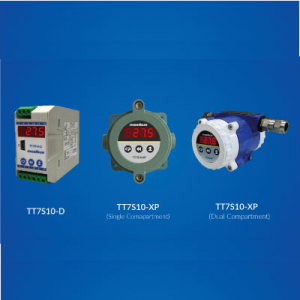

TT7S10-D: Din Rail mount with 3″, 4 digit LED display
TT7S10-XP: Wall or 2″ Pipe mount Ex-proof Transmitter with touch sense keys - 0.56″, 4 digit LED display in Single Compartment
- 0.39″, 4 digit LED display in Dual Compartment
- 1.5 KV RMS Isolation between Input & Output Linearized Output
- Highly Accurate
- Fully Programmable for Input type & Range
- Digital Filter
- Easy configuration using keys and display
- Windows mTRAN software for Configuration, Calibration & Monitoring
- Reverse Loop polarity protection
- Direct / Reverse output
- Sensor break detection
- Universal input (RTD, thermocouple, Ohm, mV)
- 1.5 KV RMS Isolation between Input & Output
- Linearized Output
- Highly Accurate
- Fully Programmable for Input type & Range
- Fast Response time: <500 ms
- Digital Filter
- Windows mTRAN software for Configuration, Calibration & Monitoring
- Reverse polarity protection
- Direct/Reverse output
- Sensor break detection
- Loop/Aux Powered models
- Communication : e-HART
- Output : 4 to 20mA
- Supply voltage : 7.5 to 45VDC
- Input : RTC, TC, Ohm, mV
- Cold junction : Internal
- Accuracy (Pt100) : <0,2K or 0,08%
- Influence of ambient : Negligible
- Load influence : Negligible
- Power supply influence : Negligible
- Resolution : 0.3uA
- Installation : DIN Rail
- Communication : e-HART
- Output : 4 to 20mA
- Supply voltage : 7.5 to 45VDC
- Input : RTC, TC, Ohm, mV
- Cold junction : Internal
- Accuracy (Pt100) : <0,2K or 0,08%
- Influence of ambient : Negligible
- Load influence : Negligible
- Power supply influence : Negligible
- Resolution : 0.3uA
- Galvanic isolation (In/Out) : 2KVAC
- Installation : DIN Rail
- Communication : e-HART
- Output : 4 to 20mA
- Supply voltage : 7.5 to 45VDC
- Input : RTC, TC, Ohm, mV
- Cold junction : Internal
- Accuracy (Pt100) : <0,2K or 0,08%
- Influence of ambient : Negligible
- Load influence : Negligible
- Power supply influence : Negligible
- Resolution : 0.3uA
- Galvanic isolation (In/Out) : 2KVAC
- Installation : DIN Rail
- Universal settings with HART-protocol for various input signals
- 2 wire technology, 4 to 20mA analogue output
- High accuracy in total ambient temperature range
- Galvanic isolation
- An internal temperature sensor of active temperature compensation
- Wide voltage supply range
- Customer specific measurement range settings
- Simple and user friendly software

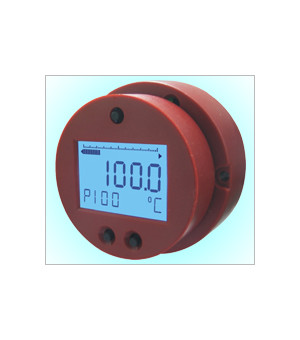

- Multiparametric backlight rotatable LCD display
- Universally progammable with HART-protocol for various input signals
- Two-wire technology, analogue output 4 to 20mA
- Highly accurate in entire operating temperature range
- Wide voltage supply range
- Customer specific measurement range settings
- Simple and user friendly software
- Multiparametric backlight rotatable LCD display
- Input: RTD
- Type:pt100
- Accuracy:0.2K or 0.1% of spanPerformance characteristics
- Response time: 1s
- Reference condition : Calibration temperature:+23°C(73.4K)±5K
- Long term stability:≤0.05%year
- Switch on delay:≤5s
- Influence of ambient: Negligible
- Load influence: Negligible
- Power supply influence:Negligible
- Resolution:1μA·Storage temperature
- Ambient temperature limits:40 to +85 °C (-40 to 185 °F)
- Storage temperature: -40 to +100 °C (-40 to 212 °F)
- Condensation: Allowable
- Degree of protection:IP00/IP66 installed
- Shock and vibration resistance:4g/2 to150 Hz as per IEC 60 068-26
- Electromagnetic compatibility (EMC) : Interference immunity and interference emission
- GB/T17626.2-1998), compliance with IEC 61000-4-3:1995
- Output: 4 to 20mA
- Supply voltage: 7.5 to 45VDC
- Input: RTD, TC, Ohm, mV
- Cold junction: Internal
- Influence of ambient: Negligible
- Load influence: Negligible
- Power supply influence: Negligible
- Resolution: 0.3uA
- Installation: sensor head Form B
- Operation: PC-programmable
* Output: 4 to 20mA * Supply voltage: 7.5 to 45VDC * Input: RTD, TC, Ohm, mV * Cold junction: Internal * Galvanic isolation: 2KVAC(In/Out) * Influence of ambient: Negligible * Load influence: Negligible * Power supply influence: Negligible * Resolution: 0.3uA * Installation: sensor head Form B * Operation: PC-programmable * Weight: approx. 35g * Dimensions: 44mm×24mm(Φ×H) |
*Output: 4 to 20mA
*Supply voltage: 7.5 to 45VDC
*Input: RTD, TC, Ohm, mV
*Accuracy(Pt100): <0.2K or 0.08%
*Cold junction: Internal
*Galvanic isolation: 2 KVAC(In/Out)
*Influence of ambient: Negligible
*Load influence: Negligible
*Power supply influence: Negligible
*Resolution: 0.3uA
*Operation: HART-protocol
*Installation: sensor head Form B
*Dimensions: 44mm×24mm(Φ×H)
*Weight: approx. 35g
