Température range : 50 °C ~ 650 °C
Accuracy: ± 0.3 °C
Stability: ± 0.02 °C
Resolution: 0.01 °C
Stabilization time: 7 minutes
Temperature unit: °C or °F selectable
Well diameter: 30 mm
Immersion length: 150 mm
Heating time: 10 minutes (Amb. to 120 °C)
Cooling time: 15 minutes (Amb. to (-) 10 °C)
                    25 minutes (120 °C to (-) 10 °C)
Communication port: RS232 port
Calibration software: MET-CAL as standard
Switch test: Provided
Power supply / Consumption: 110V to 240V AC, 50 to 60 Hz, 150 W
Dimensions (W x D x H) / Weight: 160 x 365 x 450 mm / 9 kg
Type of case: Portable
Carrying case: Provided
ISO17025 calibration certificate: Provided

CN-BT (Low Temperature):

• Temperature Range: Ambient Temp. +10 °C to 350 °C
• Accuracy: Less than 0.5% F.S. (Min. 1 °C)
• Stability: ± 0.5 °C
• Resolution: 0.1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 45 minutes
• Stabilization Time: 20 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 485 x 430 x 190 mm / 11 kg
• Calibration Certification: Factory with ISO17025 traceability included

CN-BT (Low Temperature):

• Temperature Range: Ambient Temp. +10 °C to 350 °C
• Accuracy: Less than 0.5% F.S. (Min. 1 °C)
• Stability: ± 0.5 °C
• Resolution: 0.1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 45 minutes
• Stabilization Time: 20 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 485 x 430 x 190 mm / 11 kg
• Calibration Certification: Factory with ISO17025 traceability included

Accuracy: ± 0.3 °C
Stability: ± 0.05 °C
Resolution: 0.1 °C
Stabilization time: 7 minutes
Temperature unit: Selectable °C or °F
Well diameter: 19 mm
Immersion length: 100 mm
Heating time: 14 minutes (ambient to 123 °C)
Cooling time: 34 minutes (123 °C to (-)40 °C)
Interchangeable insert: Well for Ø 1/4’’ probes as standard (other sizes available on request).
Switch test: Provided
Power supply / Consumption: 100 V to 240V AC, 50 to 60 Hz, 150 W
Dimensions (L x W x H) / Weight: 160 x 365 x 350 mm / 9 kg
Enclosure type: Portable

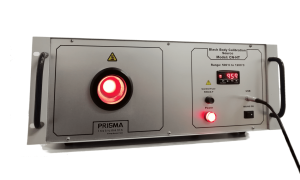

CN-HT (High Temperature):

• Temperature Range: 500 °C to 1200 °C
• Accuracy: Less than 0.5% F.S. (Min. 3 °C)
• Stability: ± 0.5 °C
• Resolution: 1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 60 minutes
• Stabilization Time: 20 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 485 x 430 x 190 mm / 11 kg
• Calibration Certification: Factory with ISO17025 traceability included

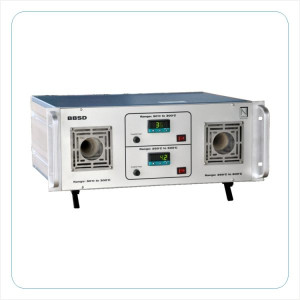

CN-DT (Duo – Dual Cavities):

• Cavity 1: +50 °C to 300 °C
• Cavity 2: +250 °C to 600 °C
• Accuracy: Less than 0.5% F.S. (Cavity 1 Min. 1 °C / Cavity 2 Min. 2 °C)
• Stability: ± 0.5 °C
• Resolution: 1 °C
• Emissivity: 0.98
• Aperture Diameter: 25 mm
• Time to Reach Max Temperature: 45 minutes
• Stabilization Time: 30 minutes (above 75 °C)
• Dimensions (L x W x H) / Weight: 450 x 410 x 190 mm / 14 kg
• Calibration Certification: Factory with ISO17025 traceability included

• Temperature range: -100°C to +25°C
• Accuracy: ± 0.3 °C
• Stability: ± 0.05 °C
• Resolution:Stabilization time: 15 minutes
  • 0.01°C (from +25 to +19.99°C)
  • 0.1°C (from 20°C to -100°C)
• Temperature unit: Selectable °C or °F
• Well diameter: 30 mm
• Immersion length: 150 mm
• Heating time: 50 minutes (from ambient to maximum)
• Cooling time:Switch test: Provided
  • 40 minutes (from +25°C to -60°C)
  • 50 minutes (from -60°C to -100°C)
• Power supply / Consumption: 90 ~ 220 V AC, 50/60 Hz
• Dimensions (L x P x H) : 439 x 240 x 358 mm
• Weight: 15 kg
• Calibration certificate: Factory traceable to ISO17025 included or ISO17025 certificate from an accredited lab
