  • Featured

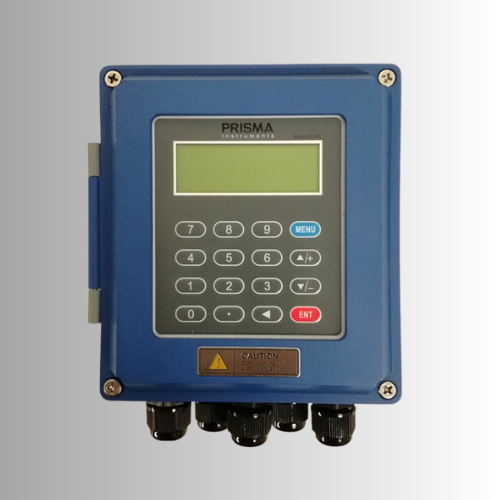

  • Accuracy: ± 1%
  • Speed: 0 ~ ± 12 m / s bidirectional
  • Display: Large LCD screen 4x16 characters
  • Menu in French
  • Communication: RS-232, 75-57600 bps
  • Built-in recorder: 2000 lines of recording data
  • Built-in Ni-MH battery, autonomy 12 hours in operation
  • Dimensions: 210 * 90 * 30 mm
  • Weight 0.5 kg
  • Choose your non-intrusive transducers between DN15 and DN6000
  • Mounting rails for transducers -30 to 90 ° C FREE

OFFER VALID UNTIL 31/03/2020

€1,195.00 Price
  • Pressure: Differential
  • Details: 0.05% of full scale
  • 11 Units: Pa, kPa, MPa, PSI, Kg / cm², Bar, mmBar, cmH20 ...
  • Display: Large LCD screen 5 or 6 Digit & Bargraph in%
  • 7 function keys
  • Temperature compensation from 0 to 50 ° C
  • 60 hour rechargeable lithium battery
  • Integrated data logger
  • Clean design & high performance
  • CE & Exia II CT4Ga approved
  • Calibration certificate with factory traceability
€935.00 Price
  • Pressure: Absolute
  • Details: 0.1% of full scale
  • 11 Units: Pa, kPa, MPa, PSI, Kg / cm², Bar, mmBar, cmH20 ...
  • Display: Large LCD screen 5 or 6 Digit & Bargraph in%
  • 7 function keys
  • Temperature compensation from 0 to 50 ° C
  • 60 hour rechargeable lithium battery
  • Integrated data logger
  • Clean design & high performance
  • CE & Exia II CT4Ga approved
  • Calibration certificate with factory traceability
€1,380.00 Price
  • Pressure: Absolute
  • Details: 0.2% of full scale
  • 11 Units: Pa, kPa, MPa, PSI, Kg / cm², Bar, mmBar, cmH20 ...
  • Display: Large LCD screen 5 or 6 Digit & Bargraph in%
  • 7 function keys
  • Temperature compensation from 0 to 50 ° C
  • 60 hour rechargeable lithium battery
  • Integrated data logger
  • Clean design & high performance
  • CE & Exia II CT4Ga approved
  • Calibration certificate with factory traceability
€835.00 Price
  • Pressure: relative
  • Details: 0.02% of full scale
  • 11 Units: Pa, kPa, MPa, PSI, Kg / cm², Bar, mmBar, cmH20 ...
  • Display: Large LCD screen 5 or 6 Digit & Bargraph in%
  • 7 function keys
  • Temperature compensation from 0 to 50 ° C
  • 60 hour rechargeable lithium battery
  • Integrated data logger
  • Clean design & high performance
  • CE & Exia II CT4Ga approved
  • Calibration certificate with factory traceability
€1,380.00 Price
  • Pressure: relative
  • Details: 0.05% of full scale
  • 11 Units: Pa, kPa, MPa, PSI, Kg / cm², Bar, mmBar, cmH20 ...
  • Display: Large LCD screen 5 or 6 Digit & Bargraph in%
  • 7 function keys
  • Temperature compensation from 0 to 50 ° C
  • 60 hour rechargeable lithium battery
  • Integrated data logger
  • Clean design & high performance
  • CE & Exia II CT4Ga approved
  • Calibration certificate with factory traceability
€835.00 Price
  • Pressure range : -0,95 bar to 160 bar
  • Media : Air
  • Adjustment resolution: 1 KPa - 10 mbar
  • Connections: 1/4NPT F, 1/4BSP F, or M20X1.5 F
  • Ergonomics & user-friendly
  • Robust design and reliable performance
  • No specific maintenance required
  • Delivered with a standard pressure gauge - ISO17025 Certificate (optional)
€2,590.00 Price
  • Precision: ± 0.5%, or ± 0.25%, of full scale
  • Units: Bar MPa, PSI
  • Relative pressure: -1 bar up to 2000 bar
  • Differential pressure: 60 mbar up to 25 bar
  • Switch: relay signal adjustable over the whole scale
  • Display: Large red 4 DIGIT LED screen
  • Keys: On / Off, ZERO, UNIT, SET
  • Connection: 1/4 ’’ NPT, 1/4 ’’ BSP, 1/4 ’’ G (or customizable)
  • Dial size: 80 mm
  • All stainless steel fitting and housing
  • 220VAC or 24VDC power supply
  • CE & Ex ExibII BT4 certificate
  • Factory calibration certificate optional
  • ISO17025 calibration certificate optional

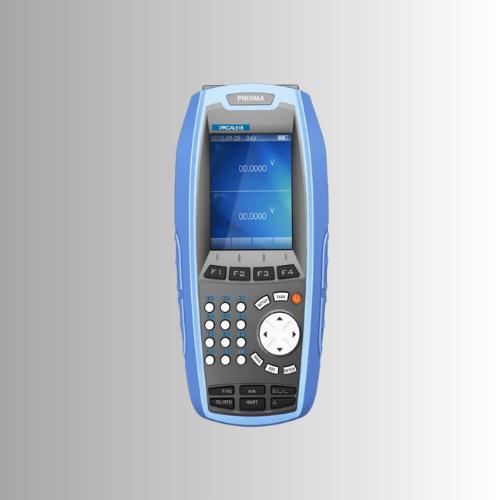

  • Accuracy: ± 0.02%, ± 0.05%, ± 0.1% of full scale
  • 10 Units: Pa, kPa, MPa, PSI, Kg / cm², Bar, mBar, cmH20, mmH20, mmHg
  • Pressures: Relative, differential, Absolute
  • Display: Large LCD screen 6 Digits double display & bargraph
  • Connection: 1/4 ’’ NPT, 1/4 ’’ BSP, 1/4 ’’ G (or customizable)
  • Measurement & simulation of electrical signals
  • 10 function keys
  • Temperature compensation from 0 to 50 ° C
  • 60 hour rechargeable lithium battery
  • HART function
  • RS232 interface
  • Integrated data logger
  • Clean design & high performance
  • CE & Exic II BT6Gc approved
  • Calibration certificate with factory traceability
  • ISO17025 certificate optional
  • Measuring range: 200Pa-10MPa
  • Output signal: 4-20mA, 4 ~ 20mA / HART, client
  • Reference accuracy: ± 0.15% URL, optional ± 0.1% URL
  • Fluid temperature: -40-120
  • Measuring fluid: level, density and pressure of the liquid, gas or vapor
  • Protection class: IP67
  • Diaphragm material: SUS316L, Hastelloy C
  • Stability: ± 0.2% URL / 60 months
  • Process connection: M20 * 1.5 (M), 1 / 2-14NPT (F), 1 / 4-18NPT (F)
  • Approvals: ATEX, MC, NEPSI, CE
  • Measuring range: 200Pa-40MPa
  • Output signal: 4-20mA, 4 ~ 20mA / HART, client
  • Reference accuracy: ± 0.075% URL, optional ± 0.05% URL
  • Fluid temperature: -40-120
  • Measuring fluid: level, density and pressure of the liquid, gas or vapor
  • Protection class: IP67
  • Diaphragm material: SUS316L, Hastelloy C
  • Stability: ± 0.2% URL / 60 months
  • Process connection: M20 * 1.5 (M), 1 / 2-14NPT (F), 1 / 4-18NPT (F)
  • Approvals: ATEX, MC, NEPSI,, CE
  • Measuring range: 200Pa-40MPa
  • Output signal: 4-20mA, 4 ~ 20mA / HART, client
  • Reference accuracy: ± 0.075% URL, optional ± 0.05% URL
  • Fluid temperature: -40-120
  • Measuring fluid: level, density and pressure of the liquid, gas or vapor
  • Protection class: IP67
  • Diaphragm material: SUS316L, Hastelloy C
  • Stability: ± 0.2% URL / 60 months
  • Process connection: M20 * 1.5 (M), 1 / 2-14NPT (F), 1 / 4-18NPT (F)
  • Approvals: ATEX, IECEx, NEPSI, RoHS, CE
  • Measuring range: 10kPa-1MPa
  • Output signal: 4-20mA, 4 ~ 20mA / HART, client
  • Reference accuracy: ± 0.1% URL, optional ± 0.075% URL
  • Substrate temperature: -40-120
  • Measuring medium: pressure, level, differential pressure, density, interface, flow
  • Protection class: IP67
  • Diaphragm material: SUS316L, Hastelloy C
  • Stability: ± 0.2% URL / 5 years
  • Process connection: DN50PN10, DN80PN10, DN100PN10
  • Approvals: CE, EX- certificate of proof
  • Measuring range: 200Pa-10MPa
  • Output signal: 4-20mA, 4 ~ 20mA / HART, client
  • Reference accuracy: ± 0.075% URL, optional ± 0.05% URL
  • Operating temperature: -40-85, LCD display: -40-120 ℃
  • Fluid temperature: -40-120
  • Measuring fluid: level, density and pressure of the liquid, gas or vapor
  • Protection class: IP67
  • Diaphragm material: SUS316L, Hastelloy C
  • Stability: ± 0.2% URL / 60 months
  • Process connection: M20 * 1.5 (M), 1 / 2-14NPT (F), 1 / 4-18NPT (F)
  • Approvals: ATEX, MC, NEPSI, CE
  • Measuring range: 200Pa-10MPa
  • Output signal: 4-20mA, 4 ~ 20mA / HART, client
  • Reference accuracy: ± 0.075% URL, optional ± 0.05% URL
  • Operating temperature: -40-85, LCD display: -40-120 ℃
  • Fluid temperature: -40-120
  • Measuring fluid: level, density and pressure of the liquid, gas or vapor
  • Protection class: IP67
  • Diaphragm material: SUS316L, Hastelloy C
  • Stability: ± 0.2% URL / 60 months
  • Process connection: M20 * 1.5 (M), 1 / 2-14NPT (F), 1 / 4-18NPT (F)
  • Approvals: ATEX, IECEx, NEPSI, RoHS, CE
  • Measuring range: 2kPa-10MPa
  • Output signal: 4-20mA, 4 ~ 20mA / HART, client
  • Reference accuracy: ± 0.15% URL, optional ± 0.1% URL
  • Operating temperature: -40-85, LCD display: -20-70 ℃
  • Fluid temperature: -40-120
  • Measuring fluid: level, density and pressure of the liquid, gas or vapor
  • Protection class: IP67
  • Diaphragm material: SUS316L, Hastelloy C
  • Stability: ± 0.2% URL / 60 months
  • Process connection: M20 * 1.5 (M), 1 / 2-14NPT (F), 1 / 4-18NPT (F)
  • Approvals: ATEX, IECEx, NEPSI, RoHS, CE
  • Type: Tubular
  • Ice tube: Thick wall borosilicate glass tube
  • End blocks: CS, SS 304, SS 316, PP, Others on request
  • Connection: Flange 15 to 50 mm / Screwed up to 25 mm
  • Process connection: Flange / Screwed / Triclover
  • Aluminum / Acrylic / SS in mm
  • Max. Hydraulic test pressure: 10 kg / cm
  • Center to center distance: 175mm to 3000mm
  • Max temperature: 100 ° C
  • Type: Magnetic level gauge
  • Indicator system: Two-color flapper made of PBS plastic, 4 mm long and 0.25 mm thick with
  • aligned magnets
  • Fleet: SS316, SS316L, SS304, SS304L, PTFE, PVDF, PP, TITANIUM
  • IP65, IP66, IP67
  • SPDT, 230 VAC, 5 A or 24VDC, 0.5 A
  • 4-20 m A

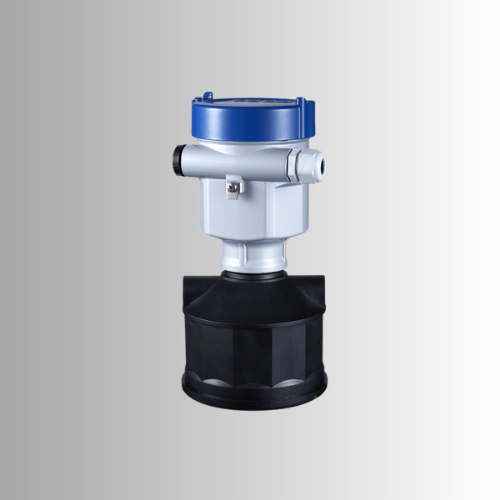

  • Measuring range: Liquid (0.5 ~ 15) m
  • Process connection: Flange or swivelling holder
  • PTFE 、 PU / PC
  • Process temperature: (-40 ~ 70) ° C
  • Process pressure: (-0.02 ~ 0.1) MPa
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Measuring range: Liquid (0.4 ~ 8) m
  • Process connection: G2A
  • PTFE 、 PU / PC
  • Process temperature: (-40 ~ 70) ° C
  • Process pressure: (-0.02 ~ 0.1) MPa
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Measuring range: Liquid (0.25 ~ 4) m
  • Process connection: G1½A
  • PTFE 、 PU / PC
  • Process temperature: (-40 ~ 70) ° C
  • Process pressure: (-0.02 ~ 0.1) MPa
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Maximum measurement range: 15m
  • Measurement accuracy: ± 10 mm
  • Process temperature: (-40 ~ 80) ° C (-40 ~ 120) ° C (-40 ~ 250) ° C
  • Process pressure: Normal, (-0.1 ~ 4) MPa
  • Frequency range: 26 GHz
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Process connection: G / H / I / J / K
  • Antenna material: S / T / V
  • Flange accessories: L / M / N / P
  • LCD optional
  • Maximum measurement range: 70m
  • Measuring accuracy: ± 15 mm
  • Process temperature: (-40 ~ 80) ° C (-40 ~ 120) ° C (-40 ~ 250) ° C (-40 ~ 400) ° C
  • Process pressure: Normal, (-0.1 ~ 4) MPa
  • Frequency range: 26 GHz
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Process connection: G / H / I / J / K
  • Antenna material: S / T / V
  • Flange accessories: L / M / N / P
  • LCD optional
  • Maximum measuring range: 20m
  • Measuring accuracy: ± 3 mm
  • Process temperature: (-40 ~ 150) ° C
  • Process pressure: Normal, (-0.1 ~ 0.5) MPa
  • Frequency range: 26 GHz
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Flange accessories: U
  • LCD optional
  • Maximum measurement range: 30m
  • Measuring accuracy: ± 3 mm
  • Process temperature: (-40 ~ 80) ° C (-40 ~ 130) ° C (-40 ~ 250) ° C (-40 ~ 400) ° C
  • Process pressure: Normal, (-0.1 ~ 0.3) MPa
  • Frequency range: 26 GHz
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Process connection: G / H / I / J / K
  • Antenna material: S / T / V
  • Flange accessories: L / M / N / P
  • LCD optional
  • Maximum measurement range: 10m; 30m (Horn 80mm)
  • Measurement accuracy: ± 5mm
  • Process temperature: (-40 ~ 130) ° C
  • Process pressure: (-0.1 ~ 0.3) MPa
  • Frequency range: 26 GHz
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Process connection: F
  • Antenna material: R
  • Flange accessories: L
  • LCD optional
  • Maximum measurement range: 70m
  • Measurement accuracy: ± 20mm
  • Process connection: Flange 316L
  • Antenna material: Stainless Steel 316L / PTFE
  • Process temperature: (-40 ~ 200) ° C
  • Process pressure: (-0.1 ~ 4) MPa
  • Frequency range: 6GHz
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Maximum measurement range: 35m
  • Measurement accuracy: ± 10mm
  • Process connection: Flange 316L
  • Antenna material: Stainless Steel 316L / PTFE
  • Process temperature: (-40 ~ 200) ° C
  • Process pressure: (-0.1 ~ 4) MPa
  • Frequency range: 6GHz
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Maximum measurement range: 30m
  • Measurement accuracy: ± 10mm
  • Process connection: PTFE Flange
  • Antenna material: PTFE
  • Process temperature: (-40 ~ 150) ° C
  • Process pressure: (-0.1 ~ 1.6) MPa
  • Frequency range: 6GHz
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)

  • Corrosive and toxic liquids, hydrocarbons / solids
  • Unaffected by gravity, pressure, temperature, viscosity, foam and dust
  • 5-digit LCM display
  • Indicates the signal range inside the silo
  • Selection of Different Unit of Measure (m, cm, mm, inches, Feet,%, mA)
  • Distance measurement and actual level
  • Language selection: Simplified Traditional Chinese, English
  • 4-20mA / 4 wires
  • Modbus RS-485 to improve isolation
  • CE standards for insulation (TRITON 2000V, class B)
  • Suitable for medium range signal
  • 4mA, 20mA output
  • Isolated circuit design
  • 26GHz
  • Maximum measurement range: 30m
  • Measurement accuracy: ± 10mm
  • Process connection: G1½A, 1½NPT
  • Antenna material: PTFE
  • Process temperature: (-40 ~ 120) ° C
  • Process pressure: (-0.1 ~ 0.3) MPa
  • Frequency range: 6GHz
  • Output signal: (4 ~ 20) mA / HART
  • Power: dual-wire (DC24V) four-wire (DC24V / AC220V)
  • Measuring range: 10kPa-3MPa
  • Output signal: 4-20mA, 4-20mA + HART, 0.5-4.5VDC, Modbus-RTU / RS485 ...
  • Accuracy: ± 0.2% URL, ± 0.5% URL
  • Fluid temperature: -40 to 120 ° C
  • Measurement: pressure, level, differential pressure, density, flow
  • Protection class: IP67
  • Diaphragm material: SUS316L, Hastelloy C
  • Stability: ± 0.2% of URL / 1 year
  • Process connection: Tri-Clamp 1-1 / 2 ", Tri-Clamp 2", DIN32676 DN32, ISO2852, DRD
  • Certificates: 3A, EHEDG, CE, RoHS, Ex-proof
  • Measuring range: 4kPa-1MPa
  • Output signal: 4-20mA, 4-20mA + HART ...
  • Accuracy: ± 0.2% URL, ± 0.5% URL
  • Substrate temperature: -40 to 120 ° C
  • Measurement: pressure, level, differential pressure, density, flow
  • Protection class: IP67
  • Diaphragm material: SUS316L, Hastelloy C
  • Stability: ± 0.2% of URL / 5 years
  • Process connection: DN50 PN10, DN80 PN10, DN100 PN10, Tri-Clamp 1-1 / 2 ", Tri-Clamp 2"
  • Approvals: CE certificate, EX-proof
  • Measuring range: 10kPa-1MPa
  • Output signal: 4-20mA, 4-20mA + HART ...
  • Accuracy: ± 0.1% URL, ± 0.075% URL
  • Substrate temperature: -40-120 ° C
  • Measurement: pressure, level, differential pressure, density, flow
  • Protection class: IP67
  • Diaphragm material: SUS316L, Hastelloy C ...
  • Stability: ± 0.2% of URL / 5 years
  • Process connection: DN50 PN10, DN80 PN10, DN100 PN10
  • Certificates: CE, EX- test certificate
Newsletter
Inscription à la newsletter
